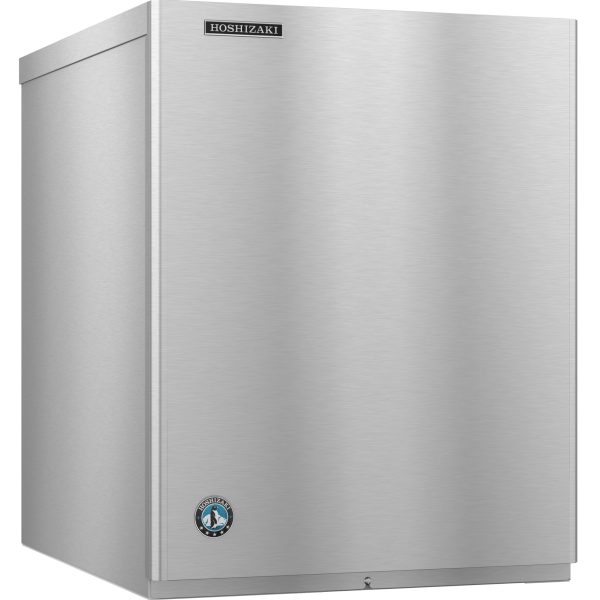

KM-520MRJZ , Crescent Cuber Icemaker, Remote-cooled

• Dimensions: 22″ W x 27-3/8″ D x 28″ H
• Up to 547 lbs of ice produced per 24 hours
• Mount 2 units side-by-side for 2x the ice production
• Produces crescent shaped ice cubes
• Durable stainless steel exterior
• Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
• EverCheck™ alert system
• CycleSaver™ design
• R-404A refrigerant (2 lbs. 4.7oz. / 1012 g)
• Heat Rejection:6200 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 12.05 amps (20 Amp Max fuse)
• 4.8 kwh/100 lbs.@ 90/70
• Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included

Spec Sheet
